Embedding Machine Learning Models to Web Apps

The best way to learn data science is by doing it, and there’s no other alternative . From this post, I am going to reflect my learning on how I developed a machine learning model, which can classify movies reviews as positive or negative , and how I embed this model to a Python Flask web application. The ultimate goal is to sail through an end to end project. I firmly believe at the end of this post, you’ll be equipped with all the necessary skill that need to embed an ML model to a web application. I came across this end to project on the book, “Python Machine Learning: Machine Learning and Deep Learning with Python, scikit-learn, and TensorFlow, 2nd Edition”[1] by Sebastian Raschka and Vahid Mirjalili. I found this book as a great investment to my data science journey and I encourage you to tryout this book.

Kindly note that I am not going in discussing about the theory and concepts in details. To keep this post simple and easy to understand, I’ll provide explanations in nutshell and I’ll share links, so that you can read more on the concepts and theories when time permits. My recommendation is to follow this post from beginning to end and re-visit the new concepts in the second phase of your reading.

Buckle up now, it’s going to be an amazing journey

This post has two main parts

  1. Develop movie reviews classifier (this post)
  2. Develop Python Flask web application and integrate movie review classifier (will release in a one weeks time)

Develop movie reviews classifier

Source(Pixabay)

I set up my developer environment in Paperspace which is a cloud infrastructure provider (may be there are other uses, but I only use as an PaaS), who provides GPU based computation power to develop machine learning and deep learning models. I created a separate project folder, “Sentiment-Analysis” in a location I selected. This is the root directory of the project.

Download movie reviews data

First let’s go ahead and download the required movie data. I created a separate file ‘download_data.ipynb’. This will download and extract movie reviews to the folder ‘data’. When you navigate inside ‘data’ folder you’ll be able to see a folder named ‘acllmdb’. Inside ‘acllmdb’ folder, there are ‘train’ and ‘test’ folders. Both ‘train’ and ‘test’ folder contains two sub-folders named ‘pos’, which contains positive reviews and ‘neg’, which contains negative reviews(Image[1]).

import os
import tarfile
from six.moves import urllib

DATA_DOWNLOAD_URL = "http://ai.stanford.edu/~amaas/data/sentiment/aclImdb_v1.tar.gz"
DATA_PATH = os.path.join("data")

def fetch__data(data_download_url = DATA_DOWNLOAD_URL, data_path = DATA_PATH):
    if not os.path.isdir(data_path):
        os.makedirs(data_path)
    tgz_path = os.path.join(data_path, "aclImdb_v1.tar.gz")
    urllib.request.urlretrieve(data_download_url, tgz_path)
    reviews_tgz = tarfile.open(tgz_path)
    reviews_tgz.extractall(path=data_path)
    reviews_tgz.close()

reviews_tgz.close()
download_data.ipynb
Image[1]: Inside data folder

You’ll note that these reviews in the ‘pos’ and ‘neg’ folders are in the form of text files. For us to do data processing and manipulation easily, our next step is to create a Python Pandas data frame.

Create Pandas data frame from text files

import pandas as pd
import os

basepath = 'aclImdb'

labels = {'pos': 1, 'neg': 0}
pbar = pyprind.ProgBar(50000)
df = pd.DataFrame()
for s in ('test', 'train'):
    for l in ('pos', 'neg'):
        path = os.path.join(basepath, s, l)
        for file in os.listdir(path):
            with open(os.path.join(path, file),
                      'r', encoding='utf-8') as infile:
                txt = infile.read()
            df = df.append([[txt, labels[l]]],
                           ignore_index=True)
            pbar.update()
df.columns = ['review', 'sentiment']
pandas_data_frame_from_text.ipynb

Above script creates a Pandas data-frame ‘df’ which contains the movie reviews from the text files from both ‘pos’ and ‘neg’ sub-directories in both ‘train’ and ‘test’ folder (this step will take around 10–20 minutes depending on the performance of your PC). If the movie review is positive, we flagged the sentiment as ‘1’ and if it is negative, we flagged the sentiment as ‘0’. In our data-frame ‘df’ we’ve two columns, ‘review’ column, which contains the review as text strings and, ‘sentiment’ column, which contains the sentiment of the review as ‘1’ or ‘0’ depending on the positiveness and the negativeness of the sentiment. Image[2] contains the first five rows of the data frame ‘df’.

Image[2] : Movie reviews in Pandas data-frame

In Image[2], we can only see the movie reviews which are positive. The reason is that, when we were creating the data-frame, the function arranged reviews in a sorted manner. For us to do better and useful data manipulations, we need to randomize the order of the movie reviews (i.e. we should see ‘0’s and ‘1’s in an uneven unsorted manner). To achieve this we can make use of in built functions ‘permutation’ and ‘random’ of NumPy library.

Randomize data-frame and save as a CSV file

import numpy as np
np.random.seed(0)
#randomize data frame
df = df.reindex(np.random.permutation(df.index))
#save data frame to a csv file called movie_data.csv
df.to_csv('movie_data.csv', index = False, encoding = 'utf-8')

## ==== Read CSV file and check first 5 rows ==== ###
df = pd.read_csv('movie_data.csv', encoding = 'utf-8')
df.head()
randomize_data_and_create_csv.ipynb
Image[3]: Unsorted movie reviews

As you’ll see in Image[3], now we’ve a randomized data frame and we’ve saved the data to a csv file which named as ‘movie_data.csv’.

Cleaning text data

The ‘review’ in our data frame has text. It is extremely important to look at these text very carefully. Let’s go ahead and visualize the last 999 characters from the data frame that we prepared in the above step.

df.loc[0, 'review'][-999:]
movie_reviews_last_999_chars.ipynb

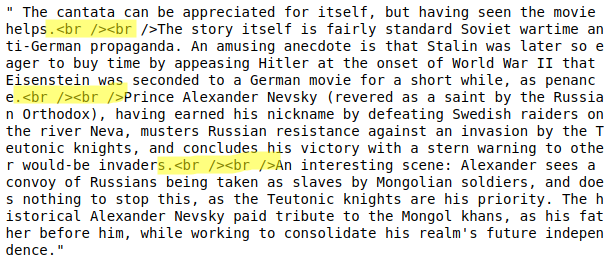

Image[4]: Reviews consists of HTML mark-up

It is apparently clear that ‘review’ column contains HTML mark-up. These mark-up does not add any useful insight to reviews. So, as a part of text cleaning process, we have to make sure that we remove these unwanted mark up before we use these reviews to develop the model.

While HTML mark-up does not contain much useful semantics, punctuation marks can represent useful, additional information in NLP context. For simplicity we are going to remove punctuation marks except for emoticons such as 🙂 since these emoticons are certainly useful for semantic analysis. We will use Python’s regular expressions (regex) to carryout this task.

These reviews are huge chunk of words. For us to analyze reviews, we need to split these reviews in to individual elements. This process is know as “tokenization”[2] in the NLP context. There are various techniques to tokenize a given text string. The simplest way is to use split() in built function in Python. Given below is a simple illustration of using split() function to tokenize set of strings to their individual elements as shown in Image[5].

def tokenizer1(text):
    return text.split()

tokenizer1('running like running and thus they run')
tokenize_text_to_individual_element.ipynb

Image[5]: Tokenize words from text

In Image[5] you can see that we’ve successfully tokenize the text to it’s individual elements. In the resulted output, we can see that the words ‘running’, and ‘run’. In NLP, there’s a technique to generate words into their root form. This technique is called “word stemming”[3]. “Porter Stemmer”[4] is quite popular among researchers in the NLP domain. In the below code segment you can see how we can use NLTK package’s PorterStemmer to obtain the root form of words (Image[6).

from nltk.stem.porter import PorterStemmer
porter = PorterStemmer()

def tokenizer_porter(text):
    return [porter.stem(word) for word in text.split()]

tokenizer_porter('running like running and thus they run')
porter_stemmer.ipynb

Image[6]: Tokenize words in their root form

In this project we are not going to look at the root form of the words. The reason is, it’s been proved that it’s not going to add a significant improvement to the model that we are going to build. For the purpose of completeness of this post, I shared this information with you.

Another vital concept in the data cleaning and pre-processing step is the concept known as “stop word removal”. “stop words” are the words that are commonly occur in all forms of texts and probably bear no useful information. Few ‘stop words’ are, isandhasarehavelike… Stop word removal makes our text processing mechanism efficient as it reduces the number of words we need to analyze. Python NLTK provides an efficient mechanism to remove ‘stop words’ from a given text corpus. You can refer the below code snippet and Image[7] to get an understanding on the mechanism of stop words removal.

import nltk
nltk.download('stopwords')
from nltk.corpus import stopwords

stop = stopwords.words('english')
[w for w in tokenizer_porter('a running likes running and runs a lot')[-10:] if w not in stop]
stop_words_removal.ipynb

Image[7]: Stop words removal results

NoteIn the above code snippet we used the ‘tokenizer_porter’ function which was defined in the previous code snippet.

As shown in the Image[7], the package ‘stopwords’ have removed the mostly occurring words such as ‘a’, ‘and’. This will reduce the size of our ‘bag of words’ (which will illustrate later in this post), hence make the computation much efficient.

By now, you are aware of number of important steps in cleaning text data.

  • remove unwanted HTML mark-up (via regular expressions)
  • tokenization(via Python split() method)
  • stemming (eg. Porter Stemmer)
  • stop word removal (via NLTK stopwords)

Making movie reviews classifier

With this background knowledge now we can go ahead and develop the sentiment classifier. We are going to apply the above steps (except for stemming) to our created movie_data.csv file.

There are two approaches to develop the classifier. One is to make use of the entire data set at once or in other words read the whole movie_data.csv file at once, create training and test set and fit the model. The drawback of this approach is that, we need to have a high performing PC/computational power. Even though I used Paperspace while trying out this tutorial, it took me almost two hours to construct my classifier with this approach. It is a very cumbersome experience. So, in this post I’m going ahead with the second approach.

When working with bigger volumes of data, machine learning practitioners use online learning algorithms. Similarly, in our case we are also going to use one of the online learning algorithm known as “out-of-core learning”[5]. In very simple terms, this is where we use a portion of data set at a given time and create the model from this portion of data. We are going to update the model with the each new data portion what we feed. By following this approach we can easily construct our model with a reasonable time frame. Also, we are going to define series of functions to perform followings :

  • stream_docs — read_csv (one document at a time)
  • get_minibatch — create smaller sized document by appending documents

and finally create the classifier with the use of above two functions. You may refer to Image[8] and the code snippet provided below to get more understanding about the classifier construction process.

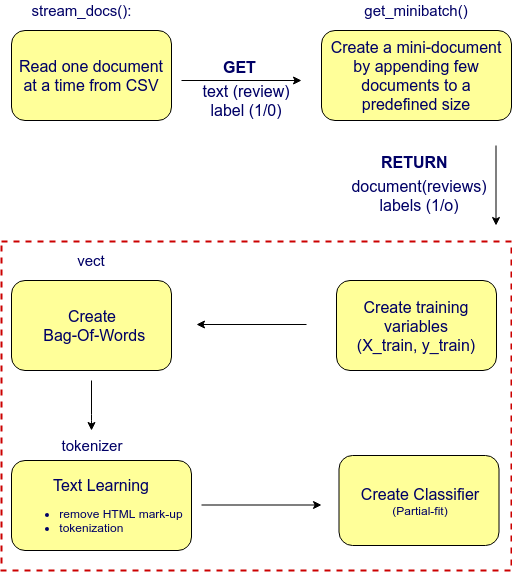

Image[8]: Classifier creation steps using out-of-core-learning approach
import numpy as np
import re
from nltk.corpus import stopwords

from distutils.version import LooseVersion as Version
from sklearn import __version__ as sklearn_version

from sklearn.feature_extraction.text import HashingVectorizer
from sklearn.linear_model import SGDClassifier

if Version(sklearn_version) < '0.18':
    clf = SGDClassifier(loss='log', random_state=1, n_iter=1)
else:
    clf = SGDClassifier(loss='log', random_state=1, max_iter=1)

doc_stream = stream_docs(path='movie_data.csv')

stop = stopwords.words('english')

def stream_docs(path):
  with open(path, 'r', encoding='utf-8') as csv:
      next(csv)  # skip header
      for line in csv:
          text, label = line[:-3], int(line[-2])
          yield text, label

def get_minibatch(doc_stream, size):
  docs, y = [], []
  try:
      for _ in range(size):
          text, label = next(doc_stream)
          docs.append(text)
          y.append(label)
  except StopIteration:
      return None, None
  return docs, y

def tokenizer(text):
  text = re.sub('<[^>]*>', '', text)
  emoticons = re.findall('(?::|;|=)(?:-)?(?:)|(|D|P)', text.lower())
  text = re.sub('[W]+', ' ', text.lower()) +
      ' '.join(emoticons).replace('-', '')
  tokenized = [w for w in text.split() if w not in stop]
  return tokenized

vect = HashingVectorizer(decode_error='ignore',
                       n_features=2**21,
                       preprocessor=None,
                       tokenizer=tokenizer)

classes = np.array([0, 1])
for _ in range(45):
  X_train, y_train = get_minibatch(doc_stream, size=1000)
  if not X_train:
        break
    X_train = vect.transform(X_train)
    clf.partial_fit(X_train, y_train, classes=classes)
movie_review_classifier.ipynb

This is all what you need to create the movie classifier. Perhaps this might seem bit complicated now, so let me walk you through the code. You may refer Image[8] as necessary.

According to Image[8], our first step is to read the csv file we created at the very beginning. In the above code snippet line #16 reads the csv file. It reads one row (document) at a time and this document then passed down to (line 53) get_minibatch() function to create a mini document. We create a mini document until the mini document’s size reach 1000 (line #53). Once this mini batch created inside the get_minibatch() function, it returns the mini batch for further processing (from line #36 to line #53). We use this mini batch and create training set variables X_train and y_train.

This X_train variable is then passed down to create the bag of words (line #56). Since we are using out-of-core learning approach we’ve used scikit-learn’s HashingVectorizer. HashingVectorizer is responsible in creating the bag of words. While creating the bag of words, it will do pre-processing over the X_train, which contains the movie reviews, and will remove unnecessary HTML mark-up while removing stop words (or frequently occuring words which do not add any value to our text corpus such as ‘a’, ‘like’ ‘is’ etc.) (line #49 and line #38–44).

We initialized HashingVectorizer with tokenizer funciton and set the number of features to 2**21. Furthermore, we reinitialized a logistic regression classifier by setting the loss parameter of the SGDClassifier to ‘log’. The reason to choose a large number of features in HashingVectorizer is to reduce the chance of causing hash collisions while increasing the number of coefficients in the logistic regression model.

Using the for loop (line #52) we iterated over 45 mini-batches of documents where each mini batch consists of 1000 documents. Having completed the incremental learning process, we’ll use 5000 documents to evaluate the performance of our model. Below I have given the code snippet with respect to the test set generation and accuracy calculation. It is pretty much self explanatory 🙂 (you may refer the above detailed explanation to deepen your understanding).

X_test, y_test = get_minibatch(doc_stream, size=5000)
X_test = vect.transform(X_test)
print('Accuracy: %.3f' % clf.score(X_test, y_test))
test_set.ipynb

Image[9]

We can see that our model has produced an accuracy of 86.7%, which is fairly okay. By now, we have completed the most important step, next step is to save this model for a later reference. Otherwise we need to perform all these steps again to come up to this point. Please do keep your current Python session open.

PS: Our csv file contains 50K records, we use 45K as the training set and 5K as the test set. You can use Pandas “info” function to see the number of records in our csv.

It’s going to be a pretty hectic task for us to train our model every we shut down our Python session. So we are going to save the classifier we trained and built. For this purpose we use Python’s in-built pickle module which allows us to serialize and deserialize Python objects to compact byte code. We can straight away reload these objects when we want to classify new samples.

import pickle
import os
dest = os.path.join('movieclassifier', 'pkl_objects')
if not os.path.exists(dest):
  os.makedirs(dest)

pickle.dump(stop,
            open(os.path.join(dest, 'stopwords.pkl'), 'wb'),
            protocol = 4)

pickle.dump(clf, open(os.path.join(dest, 'classifier.plk'), 'wb', protocol=4)
serialize_deserialize_objects.py

In the above code segment, we created a folder named ‘movieclassifier’ and ‘pkl_objects’ sub-directory to save serialized Python objects. What ‘dump’ method does is, it serialize the trained logistic regression model as well as ‘stop word’ set from NLTK library. I encourage you to read Python pickledocumentation[6] to understand more about the package (if I am to explain here, it’s going to be another blog post :D)

Our next step is to create a new Python script which we can use to import the vectorizer into the existing Python session. Let’s go ahead and create a new Python script, vectorizer.py in the movieclassifier directory that we created in the previous step.

from sklearn.feature_extraction.text import HashingVectorizer
import re
import os
import pickle

cur_dir = os.path.dirname(__file__)
stop = pickle.load(open(
                os.path.join(cur_dir,
                'pkl_objects',
                'stopwords.pkl'), 'rb'))

def tokenizer(text):
    text = re.sub('<[^>]*>', '', text)
    emoticons = re.findall('(?::|;|=)(?:-)?(?:)|(|D|P)',
                           text.lower())
    text = re.sub('[W]+', ' ', text.lower())
                   + ' '.join(emoticons).replace('-', '')
    tokenized = [w for w in text.split() if w not in stop]
    return tokenized

vect = HashingVectorizer(decode_error='ignore',
                         n_features=2**21,
                         preprocessor=None,
                         tokenizer=tokenizer)
vectorizer.py

Now, at this point, we should be able to use the Python serialized objects that we created, even from a new Python session (the hassle of training is no longer going to be there ! YaY!!!). Let’s go ahead and test. Navigate to the ‘movieclassifier’ folder. Stop your current Python session. Let’s start a new Python session and see if we can load our model from the hard disk. Fingers crossed !!!

import pickle
import re
import os
from vectorizer import vect

clf = pickle.load(open(os.path.join('pkl_objects', 'classifier.pkl'), 'rb'))
unpiclked_classifier.py

Above code segment is responsible for loading the vectorizer we created and to unpicle the classifier. Now we are in a position to use these objects and pre-process document samples and make predictions about their sentiment. For example, let’s try to check if “I love this movie”, classifies as positive or negative.

import numpy as np
label = {0:'negative', 1:'positive'}

example = ['I love this movie']
X = vect.transform(example)
print('Prediction: %snProbability: %.2f%%' %
      (label[clf.predict(X)[0]],
       np.max(clf.predict_proba(X))*100))
Image[10]

Awesome! It seems that our model is working correctly. We are in a position to integrate this machine learning model with the web application that we are going to develop. And that is the end of the first part of this two part series.

Develop Python Flask web application

This is going to be the “Part-2” of this post. I encourage you to get familiar with Python Flask web application development. A decent amount of Python Flask is fairly enough to follow the second part of this post. If you are a newbie, you can check Flask Web App Development series by Traversy Media.

Thanks a great deal for your interest in reading this article. Please do give this article a round of applauds, leave your comments and feedback, I always appreciate and welcome your views. If you found this article useful, go ahead and share with your friends 😀

Courtesy: I would like to offer an immense gratitude to Sebastian Raschka and Vahid Mirjalili. I learnt a ton from them and still learning. I never thought books can be a great resource to learn programming as I was heavily rely on online video tutorials. Now I feel, books too are a great way of learning programming and it takes a huge effort in producing a book. You can do highlight, make your own notes while learning. That’s a big plus point, so spending money of a book that you like is really a big time investment.
